| ब्रांड नाम: | Retek |
| मॉडल संख्या: | स्टील गियर |
| मूक: | 1000 पीसी |
| कीमत: | बातचीत योग्य |
| डिलीवरी का समय: | 14 दिन |

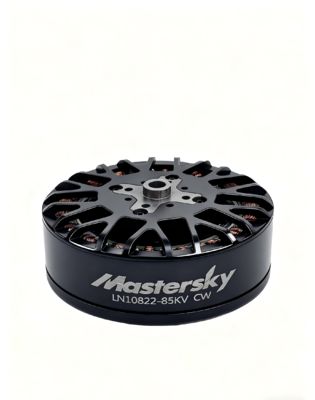

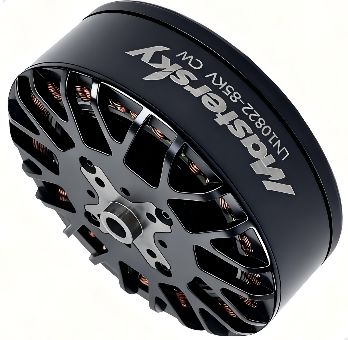

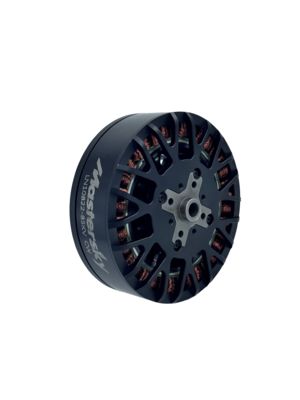

The LN10822D54 - 001 is a high - performance drone motor engineered for outstanding flight capabilities. With an 85KV rating, it offers a perfect balance of power and efficiency.
Electrical specs include a max current of 146A and a continuous working current of 50A. Measuring Φ11642.5mm (motor dimension) and Φ1082mm (stator dimension), it fits well in suitable drone frames, with an 8 - M4*10 mounting dimension for easy installation. Paired with a recommended 43 - inch propeller, it delivers impressive performance.
Test data shows that across different throttle levels (33% - 100%) at 54V, it generates substantial thrust (up to 37670g at 100% throttle), with input power reaching 7895.3W and output power peaking at 6162.9W. Speeds can go up to 3414RPM, and it maintains decent efficiency (down to 4.8g/W at max throttle).
Ideal for professional drones requiring strong lift and reliable power, the LN10822D54 - 001 motor is a top choice for enthusiasts and commercial operators alike.
|
|
| ब्रांड नाम: | Retek |
| मॉडल संख्या: | स्टील गियर |
| मूक: | 1000 पीसी |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | 25pcs/कार्टन |
The LN10822D54 - 001 is a high - performance drone motor engineered for outstanding flight capabilities. With an 85KV rating, it offers a perfect balance of power and efficiency.
Electrical specs include a max current of 146A and a continuous working current of 50A. Measuring Φ11642.5mm (motor dimension) and Φ1082mm (stator dimension), it fits well in suitable drone frames, with an 8 - M4*10 mounting dimension for easy installation. Paired with a recommended 43 - inch propeller, it delivers impressive performance.
Test data shows that across different throttle levels (33% - 100%) at 54V, it generates substantial thrust (up to 37670g at 100% throttle), with input power reaching 7895.3W and output power peaking at 6162.9W. Speeds can go up to 3414RPM, and it maintains decent efficiency (down to 4.8g/W at max throttle).
Ideal for professional drones requiring strong lift and reliable power, the LN10822D54 - 001 motor is a top choice for enthusiasts and commercial operators alike.
